Compatible Replacement Toner and Chip Combination From AQC Group UK Ltd.

OKI C5600/5700 - C5800/5900

OKI C5600

OKI C5700

OKI C5600/5700: Toner Cartridges

Part Code

Description

43324408 Black Toner cartridge capable of printing up to 6000 A4 pages at 5% density
43381907 Cyan Toner cartridge capable of printing up to 2000 A4 pages at 5% density
43381906 Magenta Toner cartridge capable of printing up to 2000 A4 pages at 5% density
43381905 Yellow Toner cartridge capable of printing up to 2000 A4 pages at 5% density

Image Drums

Part Code

Description

43381708 Black Image Drum - Up to 20,000 pages of A4, based on a typical office environment
43381707 Cyan Image Drum - Up to 20,000 pages of A4, based on a typical office environment
43381706 Magenta Image Drum - Up to 20,000 pages of A4, based on a typical office environment
43381705 Yellow Image Drum - Up to 20,000 pages of A4, based on a typical office environment

OKI C5800

OKI C5900

Toner Cartridges

Part Code &

Description

43324424 Black Toner cartridge capable of printing up to 6000 A4 pages at 5% density
43324423 Cyan Toner cartridge capable of printing up to 5000 A4 pages at 5% density
43324422 Magenta Toner cartridge capable of printing up to 5000 A4 pages at 5% density
43324421 Yellow Toner cartridge capable of printing up to 5000 A4 pages at 5% density

Image Drums

Part Code & Description

43381724 Black Image Drum - Up to 20,000 pages of A4, based on a typical office environment
43381723 Cyan Image Drum - Up to 20,000 pages of A4, based on a typical office environment
43381722 Magenta Image Drum - Up to 20,000 pages of A4, based on a typical office environment
43381721 Yellow Image Drum - Up to 20,000 pages of A4, based on a typical office environment

AQC Group Test Results for OKI C5600

Starter Cartridges

The OKI C5600 colour LED printer arrived with four starter cartridges. These cartridges contain only a small amount of toner; they also do not contain chips and visibly look different to OKI’s main replacement cartridge.

How they work – Each printer is factory set to provide a limited amount of pages using the starter hopper unit. At a pre-determind point the printer will no longer accept any further starter cartridges. Just enough toner is contained within the starter hopper units to achieve this set limit.

Example:

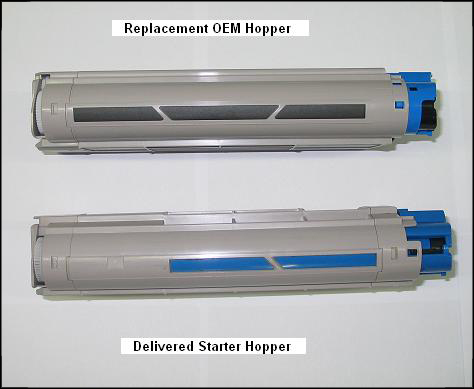

One common error is to mistake the starter hopper unit, for the genuine chipped replacement hopper unit. In the picture above, we show the easiest way to spot a starter hopper unit, this has only two vents which are coloured blue when closed. The correct chipped replacement hopper has three vents and in most cases is coloured black when closed.

OKI Hopper Unit Chips

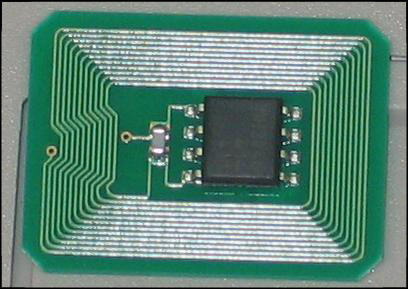

Each replacement Hopper unit purchased will contain an RFID (Radio Frequency Identification) Chip. RFID cards are also known as "proximity", "proxy" or "contactless cards”. Passive RFID tags have no internal power supply. The minute electrical current induced in the antenna by the incoming radio frequency signal provides just enough power for the CMOS integrated circuit in the tag to power up and transmit a response. Most passive tags signal by backscattering the carrier signal from the reader. This means that the antenna has to be designed to both collect power from the incoming signal and also to transmit the outbound backscatter signal. The response of a passive RFID tag is not necessarily just an ID number; the tag chip can contain non-volatile EEPROM for storing data.

When the replacement hopper unit is placed into the existing drum unit, and the printer cover is closed, the chip communicates with the printer. The printer proceeds to override the existing information it has been using regarding the fused starter cartridges, and the print requests are allowed to resume. The chip send/receivers for the printer are located on the underside of the printer lid.

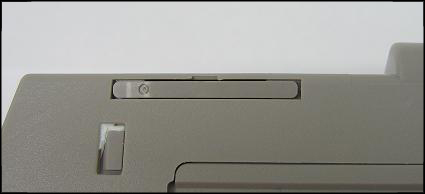

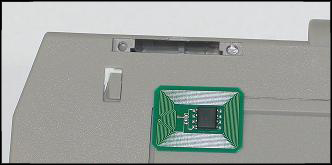

In the above two pictures, we show the chip is situated behind a small plastic clip, this can be gently lifted away to reveal the chips location.

AQC Group provides replacements for OKI C5600/5700 C5800/5900 Printers

Local Area Network

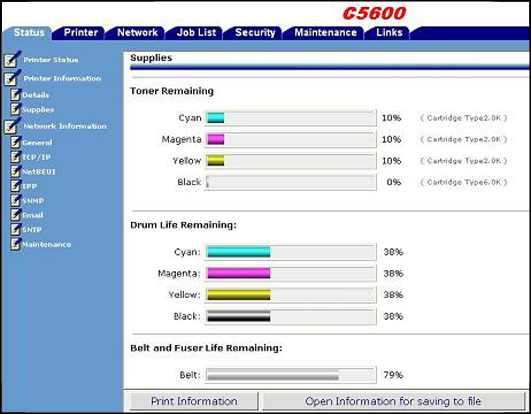

The OKI printers all arrived with Ethernet Networking ports, which considering the delivered price we paid, is another plus point from OKI. Simply plug the printer into the network, and request it through IP address or Printer name. The information is delivered via your internet browser and is user friendly.
From here we have control of the printer, we can view, print jobs, print errors, network security, task manager, access the ADMIN section and importantly view the component and chip usages

OPC DRUM UNITS

OKI in Europe has significantly reduced the cost of replacement OPC drum units, from around £70 for C3200/C5200 units, to approximately £20 for OKI C5600/C5800 drum units. Again this is another plus point for users to buy OKI original components. Also, the AQC Group replacement compatible toner is specifically designed to work with the OEM OKI OPC drum units.

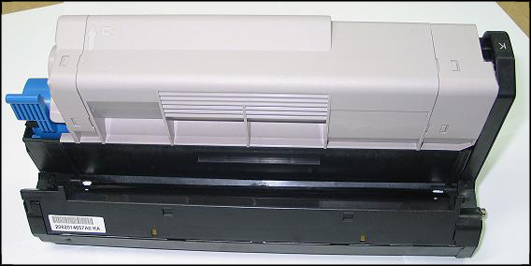

From the outside the OPC Drum unit appears to have not changed from the older C5200/C3200 drum units.

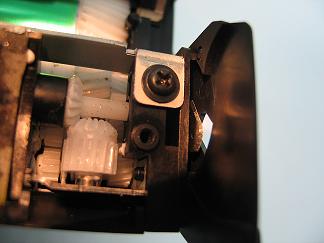

On closer inspection, some modifications have been made. OKI have incorporated a new way of delivering the Toner Out information to the printer. Gone is the magnet inside the Hopper unit, instead for these drum units now contain a series of gears, with a small revolving ‘paddle’ which blocks and locks in place when the toner drops below the acceptable low level, a sensor bar is used to measure when the toner level is too low.

Also OKI has continued with the same method of notifying the printer when the Drum unit has reached its end of life. Although this has been moved slightly inside the drum unit, and is now not so obvious it will cause no problems for those who are familiar with this resetting procedure. For further information please contact AQC Group.

AQC Photo Enhanced Glossy Replacement Toner

The AQC Group UK compatible replacement C5600/5700 & C5800/5900 toner incorporates a completly new design in toner particle size and shape, it has reduced PSD to better match to the OEM, providing greater stability and minimized offset, allowing for greater colour comparison and yield matching.

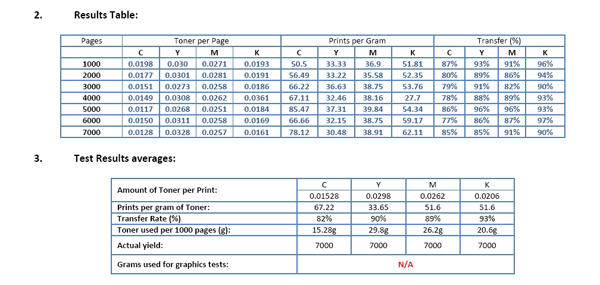

As an example in life testing the cartridges with AQC replacement toner we ran 7000 impressions of continuous printing with the new AQC replacement toner, including using one set of AQC Group replacement chips, & original worn OPC drums and recorded our results:

We believe AQC repalcement toner provides an excellent cost saving opportunity for a compataible unit, including a toner and chip combination.

Download this guide in full HERE
